China cheap factory OEM Mini wheel loader ML525W WHEEL TYPE WITH DIESEL ENGINE EPA5 FOR USA AND EURO MARKET
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power | 25HP | Color | Yellow Or Accept OEM |
|---|---|---|---|
| Engine | Kubota | Transmission | Hydrostatic Chain Drive System |
| Tires | Pneumatic 23*8.5-12 SSK | System Voltage | 12V |
Product Description

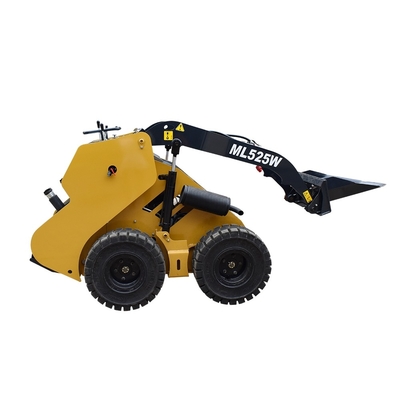

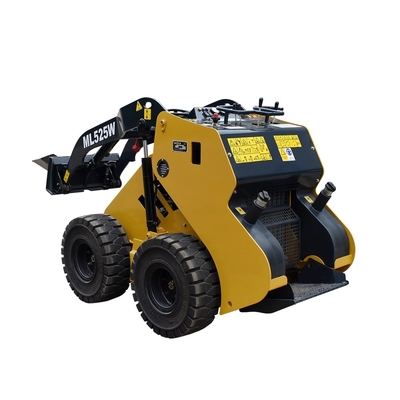

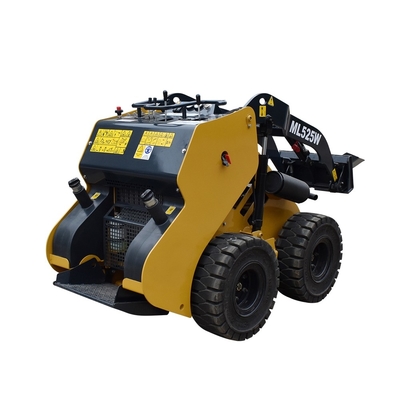

Mini wheel loader ML525W WHEEL TYPE WITH DIESEL ENGINE EPA5 FOR USA AND EURO MARKET
Engineer tyres
Quick hitch for attachement
Instrument panel
Factory showing
1: Specially customized main valve, generation combination, diversion function, boom floating function, mechanical operation is reliable, easy to repair and maintain.
2: Using the American PERMCO high-pressure gear pump, the flow can be combined and divided through the special main valve, and the system pressure is 21Mpa.
3: The US DANFOSS low-speed but torque wheel drive motor is adopted to strengthen the self-rescue function of the machine in muddy working conditions.
4: Equipped with two sets of assistive device control valves, it is convenient to expand auxiliary devices, and the flow rate can be adjusted.
5: The flow rate of auxiliary equipment can be adjusted between 0-45L/min
6: Adopt construction machinery testing methods and conduct strict thermal balance tests to ensure continuous, safe and reliable operation of the machine when the environment is 35°C.
7: Ergonomic optimization design is adopted, the climbing ability is calibrated at 16°, and the test test is 22°. The center of gravity of the whole machine is low, and the slope operation is safe and reliable.
8: Two sets of auxiliary equipment oil circuit and unloading circuit are equipped as standard, and more dual-function auxiliary equipment can be expanded without additional cost for auxiliary equipment control valve group.
Description
With a powerful Perkins diesel engine, the new ML525 model is a "little giant" that maneuvers easily in tight places and handles tough construction, agriculture and landscaping challenges with ease.
Machine
| British | Metric | |
| A. Angle of Departure | 20° | 20° |
| B. Carry Position | 7 in | 178 mm |
| C. Dump Angle @ Maximum Height | 37° | 37° |
| D. Dump Height with Standard Bucket | 50 in | 1279 mm |
| E. Dump Reach @ Maximum Height | 33 in | 830 mm |
| F. Ground Clearance | 7 in | 178 mm |
| G. Ground Clearance-under platform | 7 in | 182 mm |
| H. Height to Bucket Hinge Pin | 74 in | 1867 mm |
| I Hei ht | 53 in | 1358 mm |
| J. Length without Attachment | 77 in |
1965 mm
|
| British | Metric | |
| K. Length with Standard Bucket | 102 in | 2600 mm |
| L. Operating Height | 103 in | 2619 mm |
| M. Rollback @ carry Position | 20° | 20° |
|
N. Rollback Fully Raised @ Maximum Height |
93° | 93° |
| O. Ground Contact Length | 31 in | 775 mm |
| P. Turning Radius with Standard Bucket | 64 in | 1624 mm |
| Q. Width | 42 in | 1070 mm |
| S. Width with 36" Bucket | 49 in | 1250 mm |
Different attachments for options
Packing by box ;LCL shipping or packing in container.
