SDLG LGB877 Backhoe loader with 1.0cbm bucket capacity and 0.3 cbm backhoe capacity

  • SDLG LGB877 Backhoe loader with 1.0cbm bucket capacity and 0.3 cbm backhoe capacity
  • SDLG LGB877 Backhoe loader with 1.0cbm bucket capacity and 0.3 cbm backhoe capacity
  • SDLG LGB877 Backhoe loader with 1.0cbm bucket capacity and 0.3 cbm backhoe capacity
  • SDLG LGB877 Backhoe loader with 1.0cbm bucket capacity and 0.3 cbm backhoe capacity
Place of Origin CHINA
Brand Name SDLG
Certification CE
Model Number B877
Minimum Order Quantity 1
Packaging Details By 40HQ container
Delivery Time 30 days
Payment Terms By TT or L/C
Supply Ability 10000 Units per Year
Product Details
Leave a Message
Product Description

SDLG LGB877 Backhoe loader with 1.0cbm bucket capacity and 0.3 cbm backhoe capacity



Item Specifications Item Specifications Item Specifications
Overall dimension Max.breakout force ≥60kN Brake system
L×W×H 5899X2350X3650mm Max.gradeability 22. Service brake type Vacuum booster wet brake
Overall width(outside of rear wheel) 2240mm Engine 　 Parking brake type Manual disc brake
Max.dumping height 2176mm Model WP4G95E221 Steering system 　
Dumping distance 819mm Type  Inline,water-cooled,direct injection Type Load-sensing full hydraulic articulated steering
Min.ground clearance  346mm Rated power/speed 70kW/2200r/min System pressure 15MPa
Max.digging depth Standard boom 4327mm Telescopic boom 5352mm Engine displacement 4.5L Hydraulic system of loading implement 　
Max.digging radius Standard boom 4327mm Telescopic boom 5352mm Cylinder bore/stroke 105/130mm System working pressure 22.5Mpa
 Wheel tread(front/rear) 1928/1790mm Emission standard Ⅱ Total time ≤7.8s
Wheelbase 2170mm Rated fuel consumption ≤230g/kW.h hydraulic system of digging implement 　
Loding bucket capacity 1.0m3 Gears Four forward four reverse Engine 10L
Rate load 1800kg Speed at forword/reverse gearⅠ 0-6km/h Transmission 20L
Max.tractive force ≥82kN speed at forword/reverse gear Ⅱ 0-10km/h Drive Axle 7.5+2×0.8/15L
Digging bucket capacity 0.18m3 speed at forward gear Ⅲ 0-20km/h Brake system 2L
Max.digging force ≥56kN speed at forward gear Ⅳ  0-38km/h 　 　
Item Specifications Item Specifications Item Specifications
Overall dimension Max.breakout force ≥60kN Brake system
L×W×H 5899X2350X3650mm Max.gradeability 22. Service brake type Vacuum booster wet brake
Overall width(outside of rear wheel) 2240mm Engine 　 Parking brake type Manual disc brake
Max.dumping height 2176mm Model WP4G95E221 Steering system 　
Dumping distance 819mm Type  Inline,water-cooled,direct injection Type Load-sensing full hydraulic articulated steering
Min.ground clearance  346mm Rated power/speed 70kW/2200r/min System pressure 15MPa
Max.digging depth Standard boom 4327mm Telescopic boom 5352mm Engine displacement 4.5L Hydraulic system of loading implement 　
Max.digging radius Standard boom 4327mm Telescopic boom 5352mm Cylinder bore/stroke 105/130mm System working pressure 22.5Mpa
 Wheel tread(front/rear) 1928/1790mm Emission standard Ⅱ Total time ≤7.8s
Wheelbase 2170mm Rated fuel consumption ≤230g/kW.h hydraulic system of digging implement 　
Min.turning radius(outside of front wheel) 4178mm Max.torque 420N.m System working pressure 22.5Mpa
Horizontal crossing radius(outside of bucket) 5426mm Transmission system 　 Fill capacity 　
Overall parameter 　 Torque converter  Single-stage single-phase centripetal turbine Fuel 160L
Overall working weight 8400-8700kg Transmission type Synchronized shift Hydraulic oil 190L
Loding bucket capacity 1.0m3 Gears Four forward four reverse Engine 10L
Rate load 1800kg Speed at forword/reverse gearⅠ 0-6km/h Transmission 20L
Max.tractive force ≥82kN speed at forword/reverse gear Ⅱ 0-10km/h Drive Axle 7.5+2×0.8/15L
Digging bucket capacity 0.18m3 speed at forward gear Ⅲ 0-20km/h Brake system 2L
Max.digging force ≥56kN speed at forward gear Ⅳ  0-38km/h 　 　

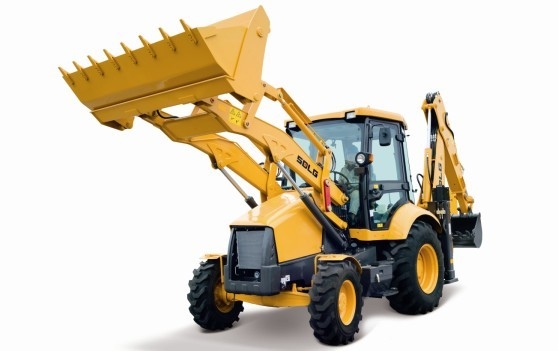

SDLG LGB877 Backhoe loader with 1.0cbm bucket capacity and 0.3 cbm backhoe capacity 0

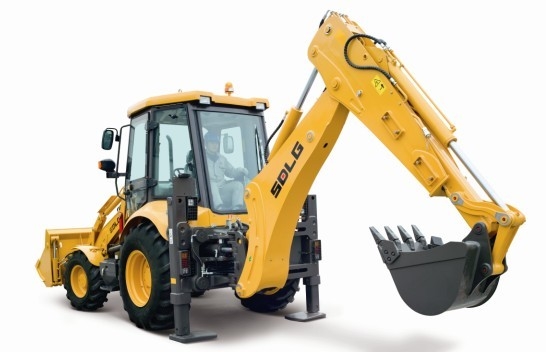

SDLG LGB877 Backhoe loader with 1.0cbm bucket capacity and 0.3 cbm backhoe capacity 1

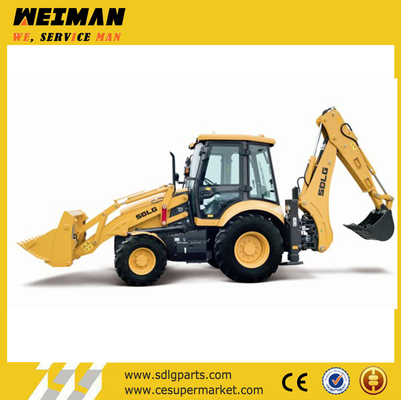

SDLG LGB877 Backhoe loader with 1.0cbm bucket capacity and 0.3 cbm backhoe capacity 2
