Mini skid steer loader hy380 with different attachments for farm garden and construction
Product Details
Product Description

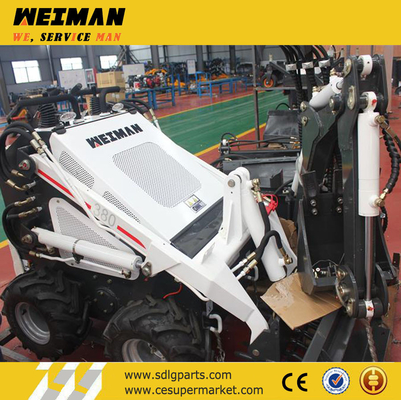

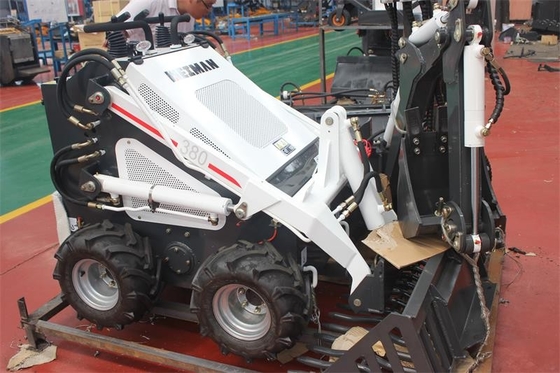

Mini skid steer loader hy380 with different attachments for farm garden and construction
HY380 MINI SKID LOADER FOR SALE

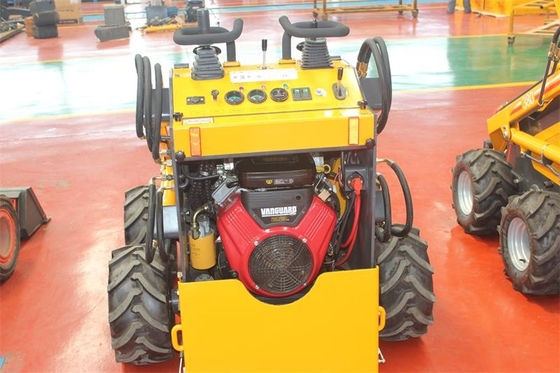

1. Engine: U.S Briggs& Stratton Engine, Gas, 23HP
2. Pump: Gear Pump
3.Valve: Italy Multi-way Valve
4. Tires: Engineer Tires. Optional: Solid Tires, Grass Tires, Crawler
6. Optional Configuration: Servo System.(Joystick)
7. Size: (mm)(L* W* H): 2206* 1160* 1233
|
Max pin height |
1884 |
|
Max Working Height |
2143 |
|
Max Dump height |
1488 |
|
Max Dump distance |
348 |
|
Total Height |
1233 |
|
Overall length with bucket |
2206 |
|
Overall Length without bucket |
1752 |
|
Bucket width |
980 |
|
Total width |
1160 |
|
Ground clearance(F) |
118 |
|
Wheel base |
636 |
|
Departure angle(α) |
11° |
|
Max Dumping angle (γ) |
30° |
|
Rollback of bucket on ground(θ) |
25° |
|
Mini Turn Radius |
1307 |
|
Rated power |
17kw(23hp) |
|
Rotating speed(rpm) |
3600 |
|
Noise(Db) |
<95 |
|
Pressure |
17 |
|
Raise |
4.27 |
|
Dump |
1.34 |
|
Lower |
3.31 |
|
Operating load |
200kg |
|
Bucket capacity |
0.15m³ |
|
Max lifting force |
375kg |
|
Travel speed |
0-5.5km/h |
|
Operating weight |
890kg |
Please wecome to contact us at skype: fzsh04061
what'sApp: 008618753989513
Wechat: 008618753989513
